The Electricity of Touch: Detection and Measurement of Cardiac Energy Exchange Between People

Rollin McCraty, Ph.D., Mike Atkinson, Dana Tomasino, B.A., and William A. Tiller, Ph.D.

In: Karl H. Pribram, ed. Brain and Values: Is a Biological Science of Values Possible. Mahwah, NJ: Lawrence Erlbaum Associates, Publishers, 1998: 359-379.

1. Summary
2. Introduction
3. Methods
4. Experimental Examples
5. Discussion
6. Future Discussions
7. References

Experimental Examples

Example 1: Holding hands

The purpose of these experiments was to test the hypothesis that when 2 people touch, an exchange of electrical energy produced by their hearts occurs. In the experiments reported on here, 6 subjects were paired in groups of 2. Each pair was monitored on a separate day. The experiment was designed to test for the appearance of the source's ECG signal in the receiver's EEG recording when the subjects were sitting several feet apart and when they held hands but made no other contact. Data were also analyzed to check for the transfer of energy in the reverse direction. The subjects were seated and fitted with ECG and EEG electrodes. The EEG electrodes were attached to the CZ, C3 and C4 locations on both subjects. The reference for both the C3 and C4 electrode was at the CZ location. The 2 subjects were simultaneously monitored using a 10-minute baseline period during which they were separated by 4 feet, followed by a 5-minute hand holding period. In this experiment subjects were instructed to hold hands and were not instructed to have any specific intention or feeling state. Signal averaging was used to detect the appearance of the source's ECG signal in the receiver's signal-averaged waveform (SAW) at the various electrode locations. The SAW in the receiver was triggered by the R-wave (250 ECG cycles) of the source's ECG.

Results

When the subjects were seated 4 feet apart, there was no indication of a transfer of energy between them from the 250 averages used in these experiments. However, when they held hands, the source's ECG could be clearly detected in the receiver's SAW at both the C4 and C3 locations.

The Electricity of Touch research paper figure 4

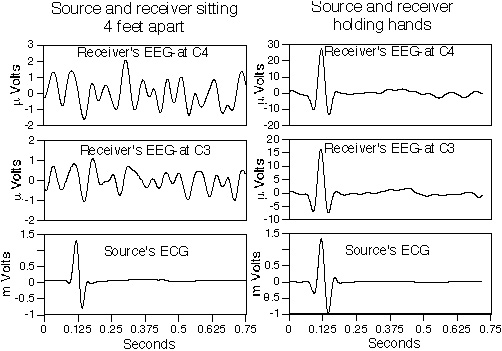

Figure 4 above shows the data from one set of subjects. In this particular subject pair, we were not able to detect an energy transfer in the reverse direction (i.e. the receiver's ECG did not appear in the source's SAW). In all 3 sets of subjects, the ECG of one of the subjects was easily detected in the other's SAW. However, in only one set of these 3 experiments were we able simultaneously to see the effect in both directions. The data were also analyzed to see if the ECG of the source was synchronized with the receiver's ECG. It was determined that there was no synchronization between the two ECGs, thus confirming that the ECG signal appearing in the receiver's recordings was indeed transmitted from the source's heart rather than the receiver's own. This was true in all the experimental examples which follow.

Example 2: Hand holding orientation

This experiment was designed to determine whether the transfer of cardiac energy, as observed in Example 1, would be affected by changes in the orientation of the subjects' hand holding (i.e. source's left hand holding receiver's right hand vs source's right hand holding receiver's left hand, etc.). Subjects were seated and fitted with ECG and EEG electrodes. Electrode placement was the same as in Example 1, with the exception that the EEG electrodes were referenced to linked ears. The subjects held hands for 5 minutes in each of the four possible orientations (source's left hand holding receiver's left hand; source's right hand holding receiver's left hand; source's left hand holding receiver's right hand; source's right hand holding receiver's right hand). The recordings were analyzed as in Example 1.

Results

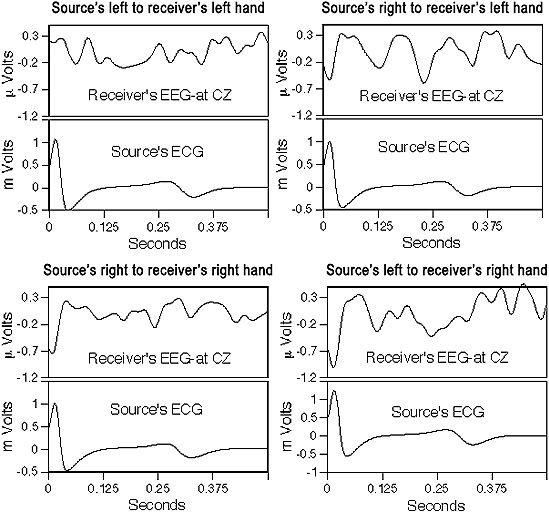

In the four different hand holding orientations tested, measurable differences were observed in the transfer of cardiac energy between subjects, as measured by the amplitude of the source's ECG signal appearing in the receiver's EEG recording. As seen in Figure 5 below, the source's ECG appeared with the largest amplitude in the receiver's SAW at the CZ location when the receiver's right hand was held by either the source's left or right hand (top right and bottom right panels). When the receiver's left hand was held by the source's right hand, the source's ECG was could still be detected in the receiver's SAW, but at a somewhat lower amplitude. Finally, when the receiver's left hand was held by the source's left hand, the source's ECG signal was not detected in the receiver's SAW.

The Electricity of Touch research paper figure 5

Example 3: Wearing glove

This experiment was designed to see if the source's ECG could be picked up on the receiver's arms and to determine whether the signal was being transferred by means of electrical conduction or by radiation. Electrodes were placed 8 inches apart on the reciever's right upper arm and in the standard locations for ECG measurement on both subjects. Once a 5-minute baseline period was recorded, the subjects joined hands and recording continued for the next 5 minutes. The experiment was then repeated with the source wearing a form-fitting full-length latex lab glove.

Results

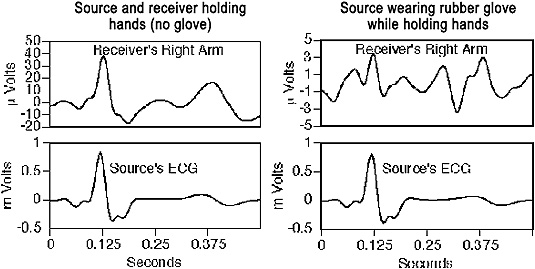

The lefthand panel in Figure 6 below shows that the source's ECG could be clearly detected on the receiver's right arm when neither subject was wearing a glove. The righthand panel depicts the results when the source was wearing the latex glove. In this case, the source's ECG signal was still present in the receiver's SAW; however it was approximately tenfold lower in signal strength.

The Electricity of Touch research paper figure 6

Example 4: Light touch

This purpose of this experiment was to determine whether the signal could be transferred by the source lightly touching the receiver's body at different locations. In this experiment, the receiver was lying supine on a padded massage table while the source stood next to the table. Three separate trials were performed: In the first, the source lightly placed his right hand on the receiver's forehead; in the second, he placed his right hand lightly on the receiver's stomach; in the third trial, the source placed one hand on the receiver's forehead and the other on his stomach. Electrodes were placed 4 inches apart on the receiver's left and right lower arms and on the standard locations for ECG measurements on both subjects.

Results

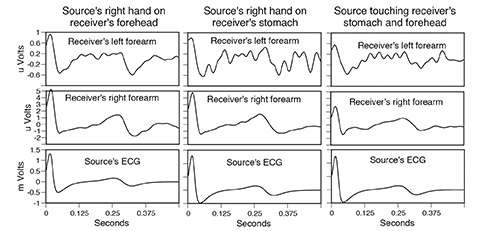

In all three trials, the source's ECG signal was clearly detectable in the receiver's SAW on both arms; however, the signal measured across the receiver's right arm was consistently 5 times greater in amplitude than the signal picked up on the left arm Figure 7 below; note scales).

The Electricity of Touch research paper figure 7

Example 5: Wired together

This experiment was designed to determine whether the cardiac energy transfer could be increased through forming a hard wire connection between the subjects. The subjects were seated side by side with 18 inches between them. After baseline recordings were established, 5 minutes of data were collected with the subjects wired together. A hard wire connection between subjects was created by placing ECG electrodes on the right side of each subject's rib cage and connecting the electrodes with a 36-inch ECG lead wire. Electrodes were placed 4 inches apart on the receiver's left and right lower arms, 2 inches apart on the receiver's forehead and at the standard locations for ECG measurements on both subjects.

Results

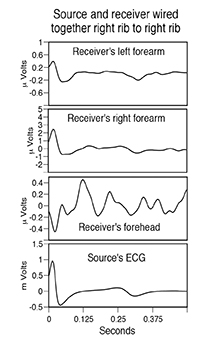

The source's ECG signal was detected in the receiver's SAW on both arms and on his forehead; however, the amplitude of the transferred signal was not increased with respect to the hand holding or light touch experiments. Figure 8 below. As was also observed in the light touch experiments (Example 4), the signal measured across the receiver's right forearm was approximately 5 times greater than that picked up on the left forearm.

The Electricity of Touch research paper figure 8

Example 6: Proximity without contact

As the cardiac signal is known to be radiated outside the body, in this experiment we sought to determine whether the signal would be detected by the receiver when subjects were not touching. The subjects were seated side by side with 18 inches between them at the closest point. Electrodes were placed 4 inches apart on the receiver's left and right lower arms and on the standard locations for ECG measurements on both subjects. Two thousand averages were used for this experiment (approximately 30 minutes recording time).

Results

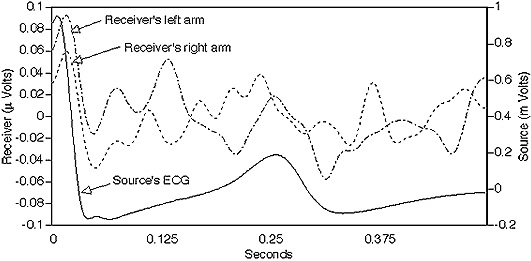

Figure 9 below is an overlay plot showing the readings from the electrodes on the receiver's arms and the source's ECG. We were able to detect a signal on the receiver's arms; however, there was a phase shift of 10 ms between the source's ECG and the appearance of the signal across the electrodes on the receiver's arms.

The Electricity of Touch research paper figure 9
